mW/cm² Red Light Therapy: How Much Is Effective?

Quick answer: Most red light therapy devices used for skin, pain, and recovery applications deliver somewhere between 5 and 100 mW/cm² of irradiance at the skin surface, with a large share of consumer and professional panels landing in the 20–60 mW/cm² range. There’s no single “correct” number — the right irradiance depends on the treatment distance, session duration, and the total dose (measured in J/cm²) the tissue actually receives, not the irradiance figure alone.

If you’re building or buying a red light therapy device, mW/cm² is one of the most misunderstood specs on the datasheet — partly because manufacturers quote it inconsistently (some measure at the LED surface, others at a set distance), and partly because irradiance alone doesn’t tell you what the tissue is actually receiving.

mW/cm² Red Light Therapy: How Much Is Effective?

This article breaks down what the number actually means, why it can’t be evaluated in isolation, and what ranges show up across the category.

What mW/cm² Actually Measures

mW/cm² (milliwatts per square centimeter) is a measure of irradiance — the power of light energy hitting a given area, at a given moment. Think of it as the intensity of the light, not the total amount of light delivered over a session.

This matters because irradiance by itself is incomplete information. A device with high irradiance used for a short session can deliver the same total dose as a device with lower irradiance used for a longer session. The output spec on a box only tells you part of the story.

Irradiance vs. Dose: The Distinction That Actually Matters

The two figures you need together are:

• Irradiance (mW/cm²) — the intensity of light at a given moment
• Dose or fluence (J/cm²) — the total energy delivered to the tissue over the full session, calculated as irradiance × time

The formula looks like this:

Dose (J/cm²) = Irradiance (mW/cm²) × Time (seconds) ÷ 1000

So a device delivering 50 mW/cm² for a 10-minute (600 second) session delivers:

50 × 600 ÷ 1000 = 30 J/cm²

That total dose figure is generally considered more clinically meaningful than irradiance alone, because it’s the cumulative energy the tissue is exposed to — and research protocols are typically described in terms of J/cm², not just mW/cm².

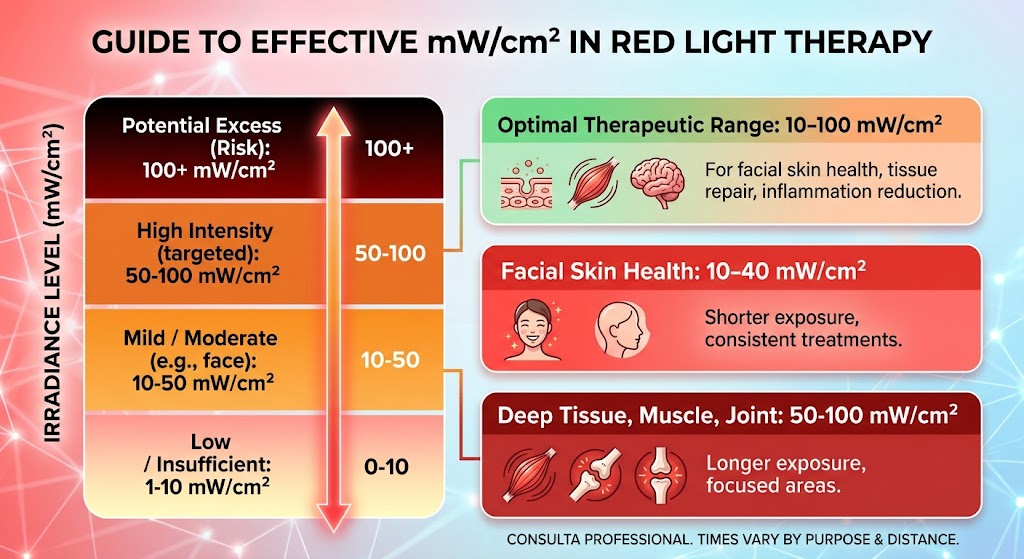

Typical Irradiance Ranges by Device Type

Device type	Typical irradiance at skin surface	Notes
Handheld/small panel (home use)	20–50 mW/cm²	Often measured close to the LED array; drops off quickly with distance
Full-body panel (home/semi-professional)	30–100 mW/cm²	Wide variance depending on LED density and driver power
Professional/clinical panel	50–150+ mW/cm²	Higher-output devices designed for shorter, supervised sessions
Facial mask	10–40 mW/cm²	Lower output is common given close, sustained skin contact over a longer session

These ranges reflect what’s commonly reported across the category rather than a single universal standard — there’s no regulatory body that mandates one “correct” irradiance for red light therapy devices generally, which is part of why the spread is wide.

Why Distance Changes Everything

Irradiance drops sharply as you move away from the light source — this is sometimes called the inverse square relationship, and it’s one of the most important practical factors in how a device actually performs in real use.

A panel rated at 100 mW/cm² measured directly at the LED surface might deliver dramatically less by the time it reaches skin held at a typical 6–12 inch treatment distance. This is exactly why irradiance specs quoted “at the LED” and irradiance specs quoted “at 6 inches” (or whatever distance is stated) are not comparable numbers — and why a spec sheet that doesn’t state the measurement distance is giving you an incomplete picture.

When evaluating or specifying a device, always ask (or state, if you’re the brand):

• Irradiance measured at what distance
• Whether that figure is peak output or average across the treatment area
• What instrument was used to measure it (a calibrated radiometer/spectrometer is the standard; self-reported LED datasheet math without independent verification is less reliable)

Why More Isn’t Automatically Better

It’s tempting to treat irradiance like a horsepower spec — bigger number, better product. That’s not how this works. Red light therapy research generally points toward a dose-response relationship that isn’t strictly linear: there’s a point past which additional irradiance or dose doesn’t produce proportionally better results, and very high irradiance delivered for too long can shift outcomes in the opposite direction from what’s intended.

This is why session duration and irradiance are designed together, not independently. A well-engineered device pairs its irradiance output with a recommended session time to land within a sensible total dose range — that pairing is more meaningful than the irradiance number on its own.

What This Means for Device Manufacturing and Sourcing

If you’re specifying a red light therapy device — whether through ODM selection or custom OEM development — irradiance is one of the core technical decisions you’ll need to nail down early, alongside wavelength selection. A few practical implications:

• Match irradiance to your intended use case and treatment distance. A facial mask worn in direct skin contact needs a very different irradiance profile than a full-body panel used at arm’s length.
• Specify measurement conditions in your product documentation. State the distance and method used to measure irradiance so your published spec is meaningful and defensible, rather than an ambiguous headline number.
• Pair irradiance with a recommended session time, not just a peak output figure, in your user instructions — this is what actually determines the dose customers receive.
• Work with a manufacturer that can independently verify output, ideally with in-house testing rather than relying solely on LED component datasheets, since real-world output depends on driver circuitry, thermal performance, and array density, not just the individual LED specs.


What Actually Determines a Device’s Real-World Irradiance

The number on a spec sheet comes from more than just the LEDs themselves. Several engineering factors determine what irradiance a device actually delivers in practice, which is part of why two devices with identical LED chips can perform very differently:

• LED density — how many diodes are packed per square centimeter of the panel or mask. Higher density generally increases irradiance but also increases heat output, which has to be managed.
• Driver circuitry and power delivery — the electronics powering the LEDs determine whether each diode is running at its rated output or underdriven to manage cost, heat, or battery life. Two devices using the same LED chip can differ substantially in real output because of this alone.
• Thermal management — LEDs lose efficiency and can degrade faster when they run hot. Devices with poor heat dissipation may quote peak irradiance that isn’t sustained through a full session.
• Lens or diffuser design — optics affect how evenly irradiance is distributed across the treatment area. A device can have a high peak irradiance directly under individual LEDs while delivering meaningfully less in the space between them.
• Manufacturing consistency — unit-to-unit variance matters at scale. A manufacturer with in-house quality control and testing is more likely to deliver consistent output across a production run than one that doesn’t verify each batch.

This is why sourcing decisions around irradiance shouldn’t stop at “what does the datasheet say” — it’s worth asking a manufacturer how output is verified (calibrated radiometer testing on finished units, not just component-level LED specs) and how consistency is maintained across production runs.

Irradiance Considerations by Application

Different use cases call for different irradiance and session-time pairings, largely driven by treatment distance and how the device contacts the body:

• Facial masks and close-contact devices typically use lower irradiance because the light source sits very close to (or against) the skin for an extended session, and even output distribution across the face matters more than peak intensity.
• Handheld and small panels used at a short, controlled distance can run moderate irradiance with shorter session times, since the user actively positions the device.
• Full-body and professional panels used at a greater, less precisely controlled distance often run higher irradiance to compensate for the falloff over distance, paired with a defined session time to land within a sensible total dose.
• Veterinary devices (for horses, dogs, and cats) frequently need to account for coat/fur density and variable, less precise positioning during use, which is part of why output and session guidance for these devices is typically designed and tested separately from human-focused products rather than simply scaled down.

Common Irradiance-Related Mistakes

• Comparing irradiance numbers across devices without checking the measurement distance. A “200 mW/cm²” device measured at the LED surface may perform similarly to a “60 mW/cm²” device measured at 6 inches.
• Assuming higher irradiance always means a better or faster result. Total dose and session design matter more than the peak number.
• Ignoring how irradiance drops off across the treatment area, not just with distance — LED density and diffuser design affect how even the output is across a panel’s surface, which a single peak irradiance figure doesn’t capture.
• Publishing an irradiance spec without stating how it was measured. This is both a customer-trust issue and, in some markets, a regulatory documentation gap.

Frequently Asked Questions

What is a good mW/cm² for red light therapy? Most effective consumer and professional devices fall somewhere in the 20–100 mW/cm² range measured at a stated treatment distance, though the “right” number depends on the intended session length and total dose, not irradiance in isolation.

Is higher mW/cm² always better? Not necessarily. Total dose (J/cm²), which factors in both irradiance and session time, is generally considered more meaningful than irradiance alone, and very high irradiance over long sessions doesn’t necessarily produce better results.

How is mW/cm² different from J/cm²? mW/cm² measures irradiance — the intensity of light at a given moment. J/cm² measures dose or fluence — the total energy delivered over the full session, calculated as irradiance multiplied by time.

Does distance from the device change the irradiance I actually receive? Yes, significantly. Irradiance drops off sharply with distance from the light source, which is why the measurement distance stated on a spec sheet matters as much as the number itself.

How do I calculate the dose my device delivers? Multiply the irradiance (mW/cm²) by the session time in seconds, then divide by 1000 to get the dose in J/cm². For example, 50 mW/cm² for 600 seconds (10 minutes) delivers 30 J/cm².

Does irradiance vary across the surface of a panel? Yes. LED density, spacing, and lens/diffuser design all affect how evenly irradiance is distributed — a panel can have a high peak reading directly beneath individual LEDs while delivering noticeably less in the gaps between them, which is why average irradiance across the treatment area matters as much as the peak figure.

Conclusion: mW/cm² Red Light Therapy

Understanding mW/cm² red light therapy specs means looking past the headline number. Irradiance tells you the intensity of light at a given moment, but it only becomes meaningful when paired with treatment distance and session time — together, those determine the actual dose (J/cm²) the tissue receives, which is the figure that matters most. Most devices on the market fall somewhere between 20 and 100 mW/cm² at a stated distance, but a well-documented spec sheet that states measurement conditions and pairs output with a recommended session time is worth more than a single impressive-sounding irradiance number.

For brands specifying or sourcing a device, this is a spec worth getting right at the manufacturing stage — irradiance, wavelength, and session design should be engineered together, with output independently verifiable rather than taken from component datasheets alone.
